EV Car Charger Installation in Houma, LA – Safe & Professional Electric Vehicle Charging Setup

At MK Electric Man - Electrician, we take pride in offering expert residential and commercial electrical repair services in Houma, LA, including EV charger installations, panel upgrades, and energy-efficient power solutions. Recently, we completed an EV car charger installation for a homeowner in Houma who had just purchased an electric vehicle and needed a reliable 240-volt power source installed safely on their property.

Electric vehicles are growing in popularity, and with that comes the need for licensed electricians who understand how to properly install EV charging stations that meet electrical code standards, offer long-term performance, and ensure user safety.

𝐒𝐢𝐭𝐞 𝐕𝐢𝐬𝐢𝐭 𝐚𝐧𝐝 𝐏𝐥𝐚𝐧𝐧𝐢𝐧𝐠 𝐭𝐡𝐞 𝐄𝐕 𝐂𝐡𝐚𝐫𝐠𝐢𝐧𝐠 𝐈𝐧𝐬𝐭𝐚𝐥𝐥𝐚𝐭𝐢𝐨𝐧

We began with a thorough inspection of the residence and discussed the homeowner’s charging needs. The client wanted a Level 2 EV charger installed on the exterior wall of their garage, which would require a 60-amp dedicated circuit running from the main electrical panel to the charger location.

After determining the optimal routing for the wiring and checking the available panel capacity, we mapped out a plan to:

- Install a #6 AWG copper Romex cable from the electrical panel to the EV charger location.

- Securely run the feeder cable under the home, ensuring it is stapled to floor joists and supported on sills.

- Prevent any portion of the cable from resting on the ground to avoid damage.

- Install a 60-amp breaker in the main panel to provide overload protection.

- Mount and connect the 240V EV charger power box according to manufacturer specifications.

𝐏𝐫𝐨𝐟𝐞𝐬𝐬𝐢𝐨𝐧𝐚𝐥 𝐄𝐥𝐞𝐜𝐭𝐫𝐢𝐜𝐚𝐥 𝐖𝐨𝐫𝐤 𝐟𝐨𝐫 𝐚 𝐂𝐥𝐞𝐚𝐧 𝐚𝐧𝐝 𝐒𝐞𝐜𝐮𝐫𝐞 𝐒𝐞𝐭𝐮𝐩

Once the plan was in place, our electrician got to work.

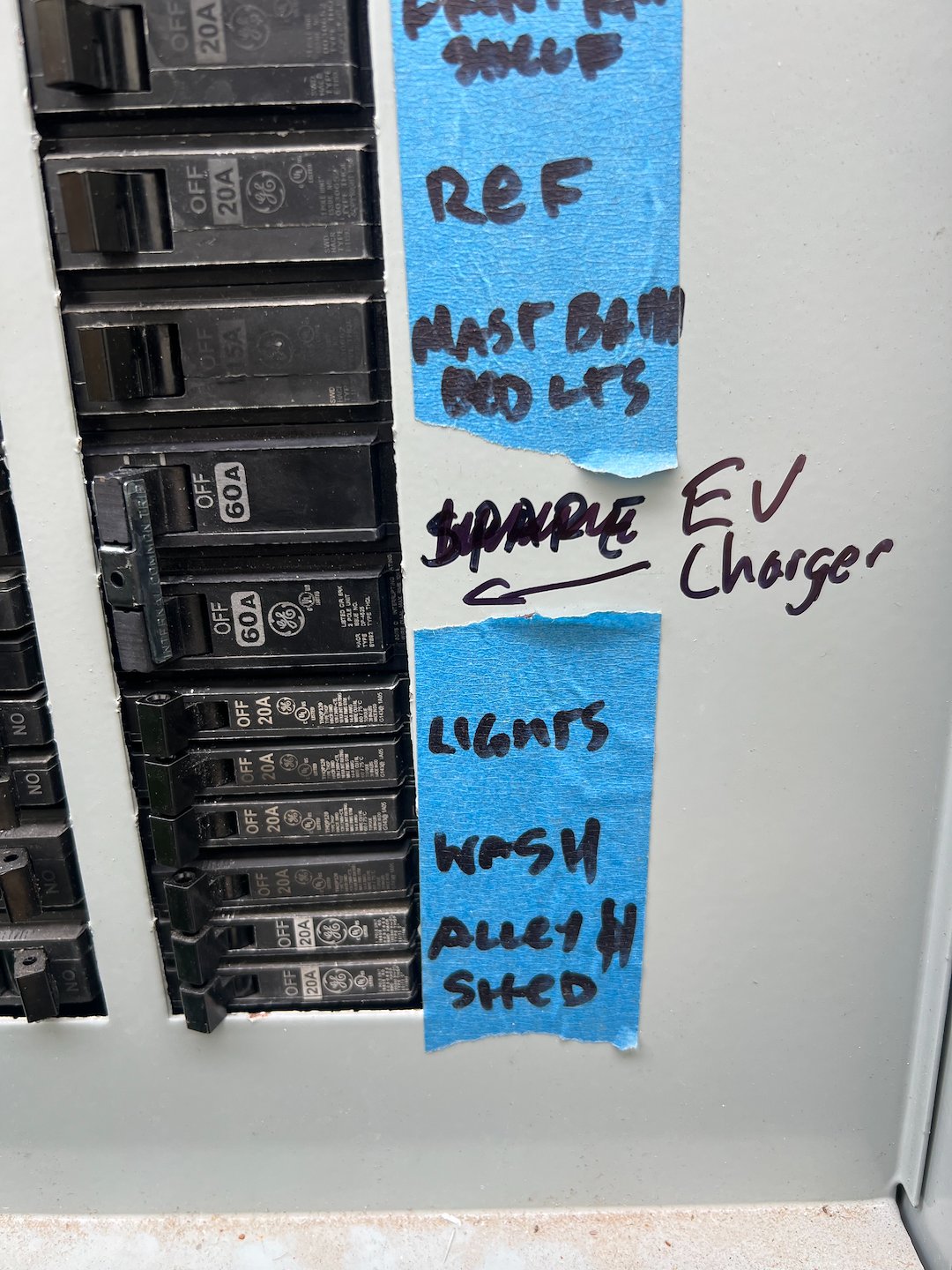

✅ First, we installed the 60-amp breaker inside the main electrical panel, ensuring that it met NEC code requirements and provided the appropriate overcurrent protection for the EV circuit.

✅ Next, we routed the #6 AWG copper Romex feeder cable beneath the home, securely stapling it to the floor joists and attaching it to the sills. We took care to avoid any contact with the ground to prevent future issues with moisture or physical damage.

✅ At the charger location, we mounted the EV power box at a comfortable, code-compliant height, providing easy access for daily vehicle charging.

✅ All connections were carefully made, torqued to manufacturer specifications, and inspected for proper grounding and polarity.

Final Testing and Client Walkthrough

After completing the installation, we performed a full system test to verify that the new 240V EV charging circuit was functioning correctly and delivering the expected amperage. The charger powered up successfully, and we demonstrated its use to the homeowner, including how to safely plug and unplug the unit.

We also walked the client through their new 60-amp breaker in the main panel, explaining how to reset it in case of an overload and when to call an electrician for support.

Budget and Materials

💰 Project Budget: $495.00

🧰 Materials Used:

- **#6 AWG Copper Romex Feeder Cable**: Essential for safely delivering power to the EV charger.

- **60-Amp Double-Pole Circuit Breaker**: Provides necessary overload protection for the electrical circuit.

- **EV Charger Power Box and Hardware**: Required for mounting and connecting the EV charger, ensuring compliance with manufacturer specifications.

𝐓𝐫𝐮𝐬𝐭𝐞𝐝 𝐄𝐕 𝐂𝐡𝐚𝐫𝐠𝐞𝐫 𝐈𝐧𝐬𝐭𝐚𝐥𝐥𝐚𝐭𝐢𝐨𝐧 𝐢𝐧 𝐇𝐨𝐮𝐦𝐚, 𝐋𝐀

This job is a great example of how MK Electric Man - Electrician provides top-tier electrical repair and installation services that combine safety, code compliance, and client satisfaction. Whether you're upgrading your home for electric vehicle charging, need panel repairs, or want a new lighting setup installed, our experienced team is ready to help.

For reliable EV charger installation in Houma, LA, contact MK Electric Man - Electrician today — your trusted partner in power and performance.

Service provided: EV Chargers, Carbon Monoxide & Smoke Detectors

Budget: 495.00

Location: Houma, LA
